“veLink connects up to eight Victron devices via Bluetooth and centralizes their key data on the NMEA2000 network. It allows monitoring of battery status, solar inputs, DC converters, shore/alternator charging and consolidates alarms for simple monitoring from onboard multifunction displays.”

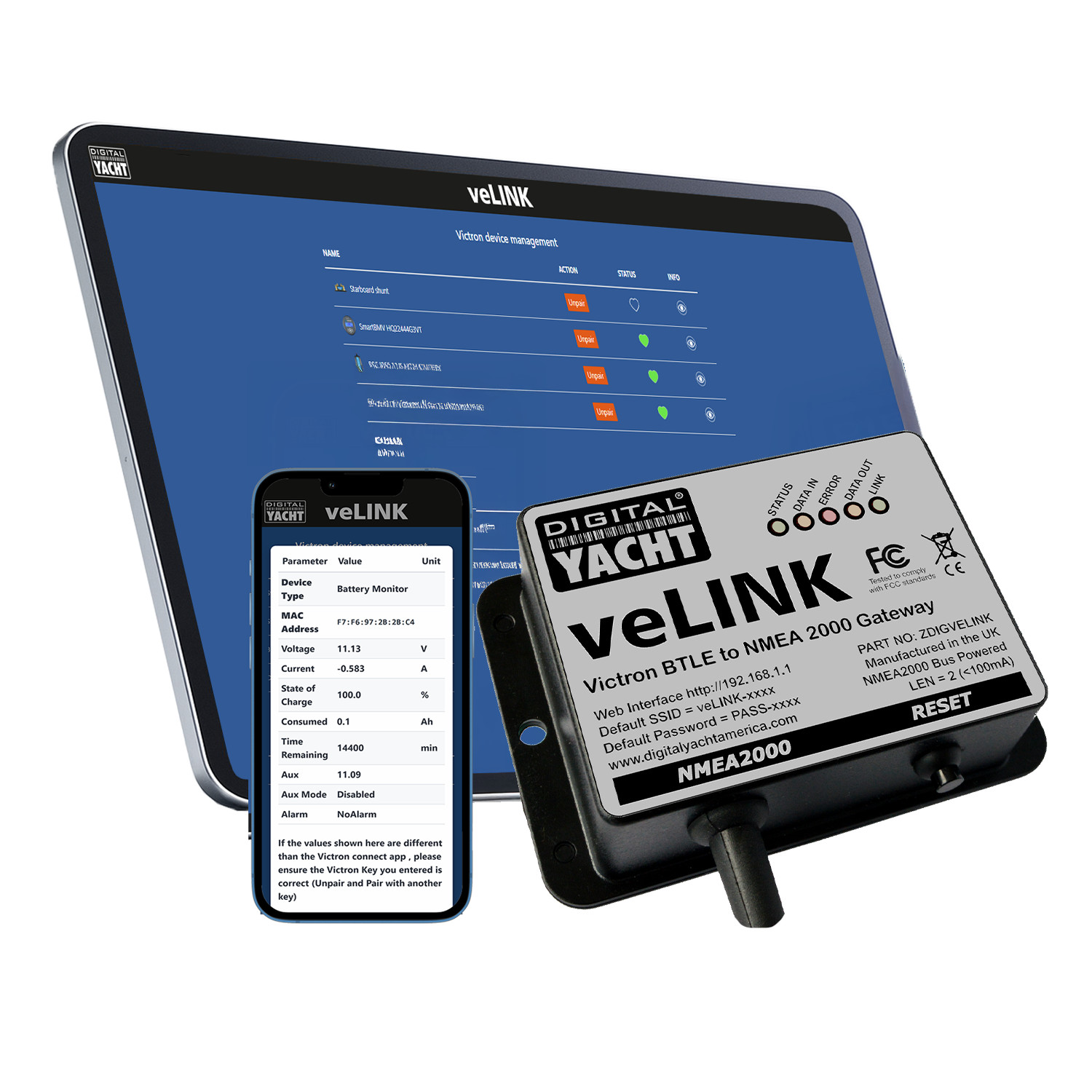

veLink – Victron BT to NMEA 2000
SKU: ZDIGVELINK
What are Device Instance and Data Instance, and when should they be changed?
What is the purpose of Device Instance and Data Instance?
veLink supports multiple Bluetooth devices of the same type on a single NMEA 2000 network. To ensure that each device and its transmitted data are uniquely identified, veLink uses both Device Instance and Data Instance.
For most installations, no manual configuration is required. During the pairing process, veLink automatically assigns a Device Instance that is not already in use by another paired device, preventing conflicts between devices of the same NMEA 2000 Device Class and Function.
The Data Instance is used to differentiate multiple data sets transmitted within the same PGN. This is particularly useful when a single device reports several values of the same type. For example, a battery monitor may transmit two Battery Status PGNs, where Battery Instance 0 represents the input battery and Battery Instance 1 represents the output battery.
To simplify installation for standard users, the Data Instance setting is hidden during the initial pairing process. It can only be modified later through the Edit menu, which is intended for advanced configuration.
Can these settings be changed after pairing?
Yes. The Edit function allows both Device Instance and Data Instance to be modified without removing and re-pairing the device. This makes it easy to resolve instance conflicts or adapt the configuration to existing NMEA 2000 installations while preserving the Bluetooth pairing.
Which Victron devices is the veLink compatible with?
- SmartShunt, SmartShunt IP65, BMV-712 Smart, compatible BMV-700/702 via VE.Direct Bluetooth Smart Dongle
- BlueSolar / SmartSolar MPPT, including VE.Direct and selected VE.Can SmartSolar models that use the Instant Readout solar format if they have Bluetooth adapter.
- Blue Smart IP65, IP22, IP67 and related Blue Smart AC chargers
- Phoenix Smart IP43 chargers family
- Orion-Tr Smart DC/DC chargers, isolated and non-isolated
- Orion XS DC/DC battery chargers
- SmartShunt and BMV configured as Smart DC Energy Meter
Please contact us if you would like to add a Victron device to the veLink compatible list.
veLink Quick Start Guide
767.72 KB| Dimensions | 105 × 72 × 32 mm |
|---|
